DIGS

My participation in the DIGS project took place during my doctoral studies as a member of the LTSI team (Laboratoire Traitement du Signal et de l'Image). The results of the project were published through several scientific articles, especially one by my own authorship titled “Analysis of Cardiac Vibration Signals Acquired From a Novel Implant Placed on the Gastric Fundus”.

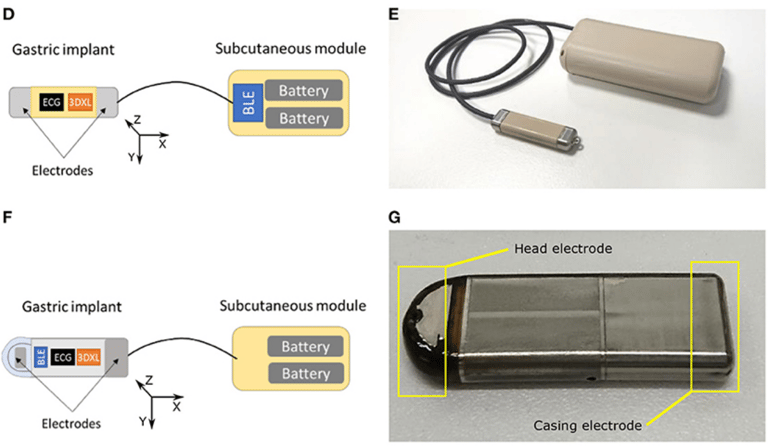

In this project, we evaluated the feasibility of acquiring useful electrocardiographic (ECG) and accelerometry (ACC) data from an innovative implant located in the gastric fundus. In a first phase, we compared data acquired from the gastric fundus with gold standard data acquired from surface sensors on 2 pigs. A second phase investigated the feasibility of deriving useful hemodynamic markers from these gastric signals using data from 4 healthy pigs and 3 pigs with induced HF with longitudinal recordings.

The following data processing chain was applied to the recordings: (1) ECG and ACC data denoising, (2) noise-robust real-time QRS detection from ECG signals and cardiac cycle segmentation, (3) Correlation analysis of the cardiac cycles and computation of coherent mean from aligned ECG and ACC, (4) cardiac vibration components segmentation (S1 and S2) from the coherent mean ACC data, and (5) estimation of signal context and a signal-to-noise ratio (SNR) on both signals.

Results showd a high correlation between the markers acquired from the gastric and thoracic sites, as well as pre-clinical evidence on the feasibility of chronic cardiovascular monitoring from an implantable cardiac device located at the gastric fundus. The main challenge remained on the optimization of the signal-to-noise ratio, in particular for the handling of some sources of noise that are specific to the gastric acquisition site.
